马克10.F1505S-IM Test frame w/ IntelliMESUR® soft, sngl lic, vert, short, 1,500 lbF / 6.7 kN

由Mark-10
ID#: F1505S-IM-MRK
| MFGID: F1505S-IM
Your Price:
11,970.00美元
数量 价格
Request Info
Questions? CallCall Us864.433.9771 | Mon-Fri 8-5 EST

产品信息rmation

Description

速度范围： 0.001 - 60 in/min
[0.02 - 1,525 mm/min]		 0.001 - 70 in/min
[0.02 - 1,800 mm/min]
Load accuracy
(% of full scale)
  • 测试框架+力传感器，一起校准：±0.1％
  • Test frame alone: ±0.1%
  • Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%
Speed setting accuracy: ±0.2%
Load sampling rate: 20,000 Hz.
Data acquisition rate: 1,000 Hz
Speed accuracy: ±0%, stepper motor driven
距离精度： ±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution: 0.0005英寸(0.01毫米)

Specifications

  • Details:

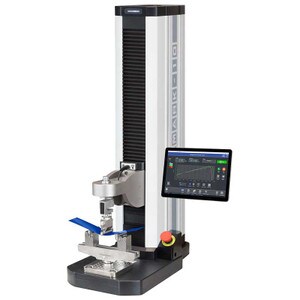

    Advanced Test Frames

    This family of force testers is designed for tension and compression force testing applications, with force capacities up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

    通过IntellimmsUR®软件设置测试，记录数据和分析数据。从基本测试到多步调序，IntellimeUR®完全与F系列系列集成。从已配置的平板电脑控制面板或独立软件中选择您自己的Windows设备。

OPTIONAL ACCESSORIES

ID# 产品名称 价格
FS05-012-MRK 马克10.FS05-012 Force sensor, 0.12 lbF / 2 ozF / 50 gF / 0.5 N / 500 mN $1,116.25
FS05-025-MRK 马克10.FS05-025 Force sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN $1,116.25
FS05-05-MRK MARK-10 FS05-05力传感器，0.5 LBF / 8 OZF / 250 GF / 2.5 N / 2500 MN $1,116.25
FS05-10-MRK 马克10.FS05-10 Force sensor, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N $969.00
FS05-100-MRK. 马克10.FS05-100 Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N $969.00
FS05-2-MRK 马克10.FS05-2 Force sensor, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N $969.00
FS05-20-MRK 马克10.FS05-20 Force sensor, 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N $969.00
FS05-200-MRK. MARK-10 FS05-200力传感器，200 LBF / 3200 OZF / 100 KGF / 1000N / 1NO $1,116.25
FS05-300-MRK 马克10.FS05-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN $1,116.25
FS05-5-MRK 马克10.FS05-5 Force sensor, 5 lbF / 80 ozF / 2.5 kgF / 2500 gF / 25 N $969.00
FS05-50-MRK. 马克10.FS05-50 Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N $969.00
FS05-500-MRK 马克10.FS05-500 Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN $1,116.25
MR07-100-MRK 马克10.MR07-100 Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N $655.50
MR07-1000-MRK. MARK-10 MR07-1000力传感器，1000 LBF / 16000 OZF / 500 KGF / 5000 N / 5 KN $655.50
MR07-1500-MRK 马克10.MR07-1500 Force sensor, 1500 lbF / 24000 ozF / 750 kgF / 7500 N / 7.5 kN $655.50
MR07-200-MRK MARK-10 MR07-200力传感器，200LBF / 3200 ozf / 100 kgf / 1000 n / 1 kn $655.50
MR07-300-MRK 马克10.MR07-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN $655.50
MR07-50-MRK. 马克10.MR07-50 Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N $655.50
MR07-500-MRK 马克10.MR07-500 Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN $655.50
MR07-750-MRK 马克10.MR07-750 Force sensor, 750 lbF / 12000 ozF / 375 kgF / 3750 N / 3.75 kN $655.50

PRODUCT SERIES

ID# 产品名称 价格
F1505-IM-MRK 马克10.F1505-IM Test frame w/ IntelliMESUR® soft, single license, vert, 1,500 lbF / 6.7 kN $ 12,540.00
F1505S-IM-MRK 马克10.F1505S-IM Test frame w/ IntelliMESUR® soft, sngl lic, vert, short, 1,500 lbF / 6.7 kN 11,970.00美元
F755-IM-MRK MARK-10 F755-IM测试框架W /INTELLIMESUR®软，单一许可证，VERT，750 LBF / 3.4 KN 11,352.50美元
F755S-IM-MRK 马克10.F755S-IM Test frame w/ IntelliMESUR® soft, sngl lic, vert, short, 750 lbF / 3.4 kN $10,735.00
